豆類拋光機? Beans Polishing Machine

豆類拋光機? Beans Polishing Machine

關鍵詞:

咨詢電話:

熊經理 18168863192

周經理 13665101927

產品介紹

豆類拋光機 Beans Polishing Machine

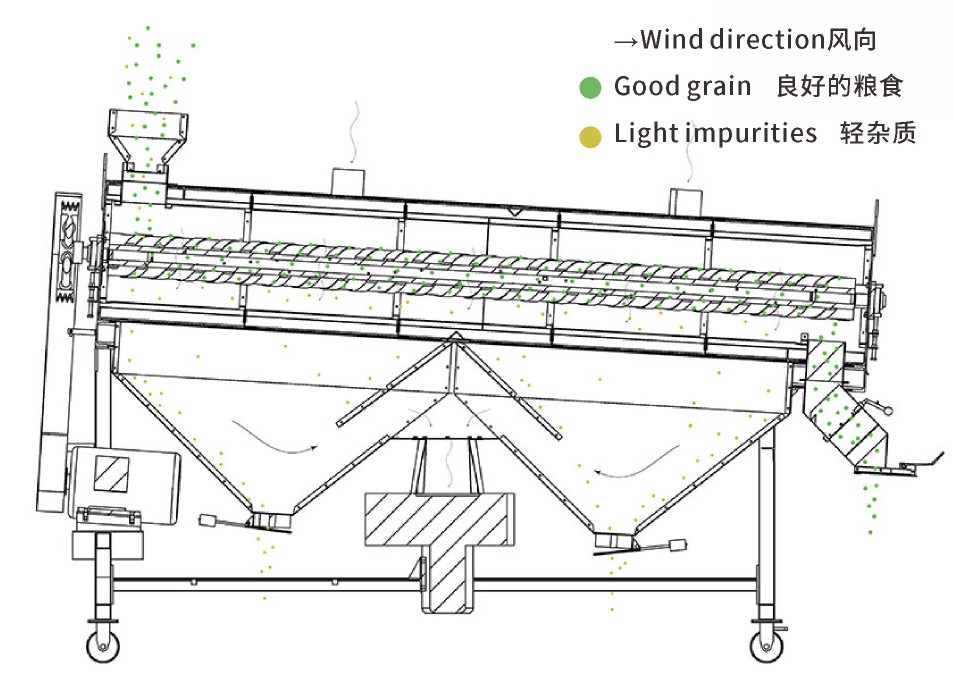

采用螺旋傳動原理進行物料輸送,純棉帆布的摩擦可以去除各種豆面灰塵,拋光物料,還可以去除玉米面上的雜物。


產品詳細信息

1、拋光摩擦材料采用優質白帆布,表面光潔度高,破碎率低。

2、 滾筒采用sus304不銹鋼編織網,耐磨性好,使用壽命長。

3、 可以定制做成移動式。


Mame

產品名稱

Model

型號

Power(kw)

功率

Capacity(t/h)

產量

Weight(kg)

自重量

Overall Size L×W×H(mm)

外形尺寸

Voltage

電壓

Beans    Polishing Machine

豆類拋光機

5XPG-5

1.Motor Detail: One Fan, One Motor

1.電機詳圖:一個風扇,一個電機
  2.Fan Motor: 1.5kW

2.風機電機:1.5kW
  3.Motor:5.5kW

3.電機:5.5kW
  4.Total: 7.0kW

4.總計:7.0千瓦

5t/h Based On Wheat

5t/h以小麥為準

750

3240×720×2100

380V, 50HZ, Three Phases (must Be Three Phases,   Voltage Can Be Design To Others)

380V,50 Hz,三相(必須為三相,電壓可設計為其他)


Using the principle of spiral transmission to transport materials, the friction of cotton canvas can remove all kinds of soybean dust, Polish materials, and remove the sundries on the corn surface.


Product Details

1.High quality white canvas is used as polishing friction material, with high surface finish and low crushing rate.

2.The drum adopts SUS304 stainless steel woven mesh, which has good wear resistance and long service life.

3.It can be customized to be mobile.
